LED Explosion Proof Flood Light
1.Environmentally Friendly 50,000 hrs lifetime
2.Superior color rendering index compared to HPS, LPS or MV
3.Low temperature applications to -40℃ and high temperature up to 55℃（65℃）
4.Professional light distribution design, uniform and comfortable lighting
5.Temperature compensation technology for longer life
6.Low maintenance costs and power consumption reduced by over 50%
- Specification
- Optical Parameters

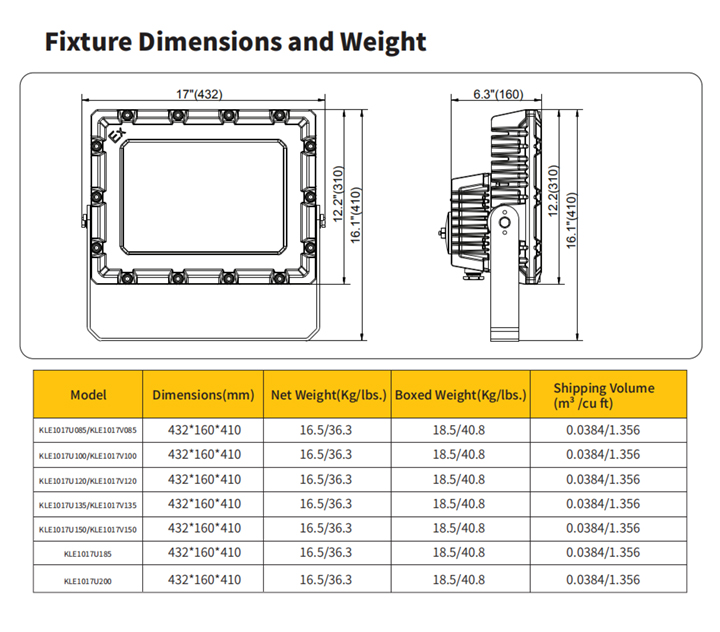

- Dimension

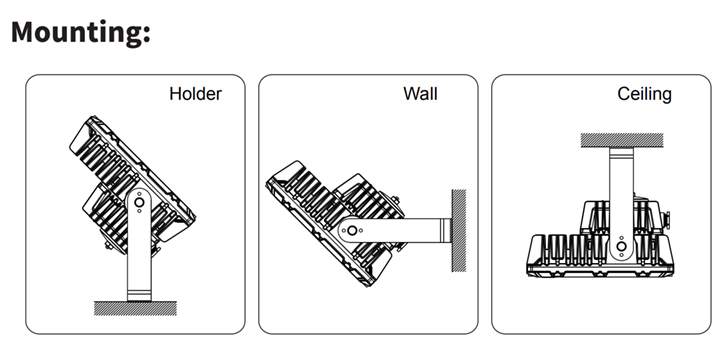

- Installation
- Packing
|
Item |
Technical Data |
Unit |
|
Power Rating |
135/150/185/200/240 |
W |
|
Voltage Rating |
100-277 |
VAC |
|
Frequency |
50-60 |
Hz |
|
Power Factor |
>0.95 |
- |
|
Surge protection |
5000 |
V |
|
Light Source |
LED |
- |
|
Lifespan |
50000 |
h |
|
Light Efficiency |
110-140 |
lm/W |
|
CCT |
4000/5000/6000 |
K |
|
CRI |
>75 |
- |
|
Lamp Type |
I |
- |
|
Lamp Body |
High quality aluminum |
- |
|
Color |
Yellow |
- |
|
Size of Input Cable |
Φ6～8mm，3×1.0mm² |
- |
|
IP Rating |
IP66 |
- |
|
Corrosion -Proof grade |
WF2 |
- |
|
Working temperature |
-40～50 |
℃ |
|
Storage temperature |
-40～50 |
℃ |
|
Size |
432*355*152 |
mm |
|
Weight |
15.2/15.4/15.6 |
Kg |
|
Certificate |
BV,ATEX,UL.ROSH,CCC，CE |
- |
