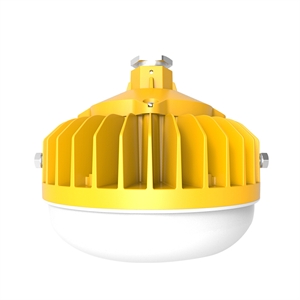

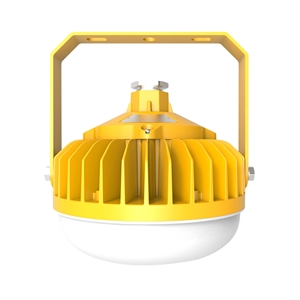

ATEX-LED Explosion Proof Lighting
1.Using the international famous LED as the lighting source, all of our lamps are of high light efficiency，low light-declining and long lifespan.
2.Good design for the heat radiation, to reduce the heat of the inside and extend lamps lifespan.
3.Anti-glare and light design, suitable for various places.
4.Clear parts pressed from superior unique material, high impact resistance performance,excellent light transmission, anti-dazzle.
- Specification
- Optical Parameters

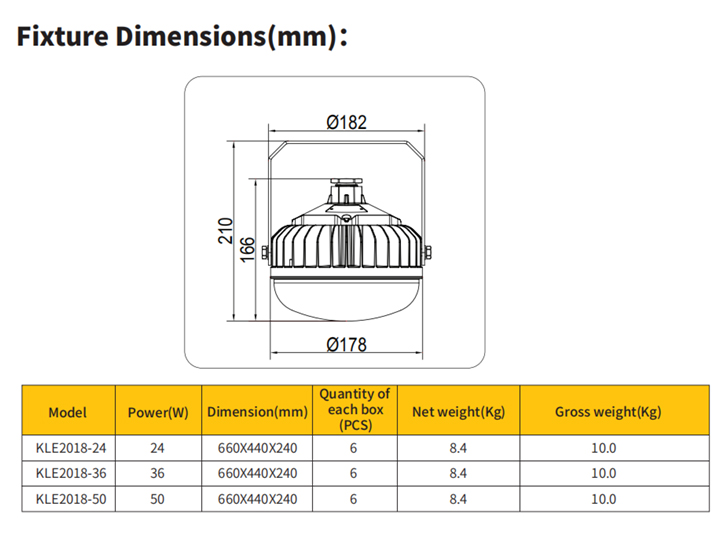

- Dimension

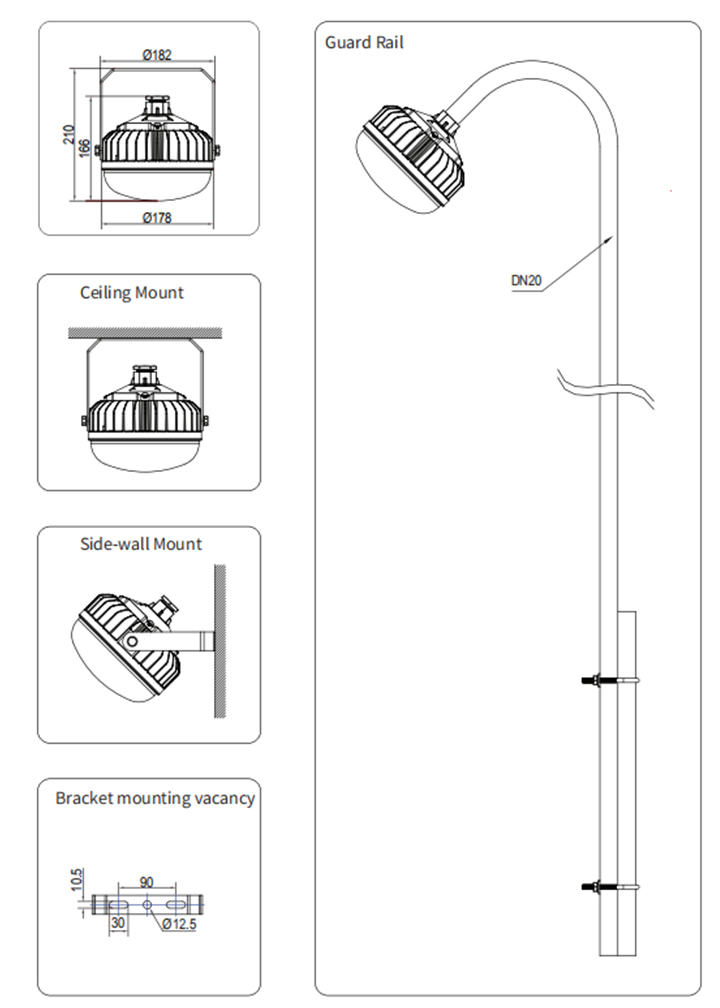

- Installation

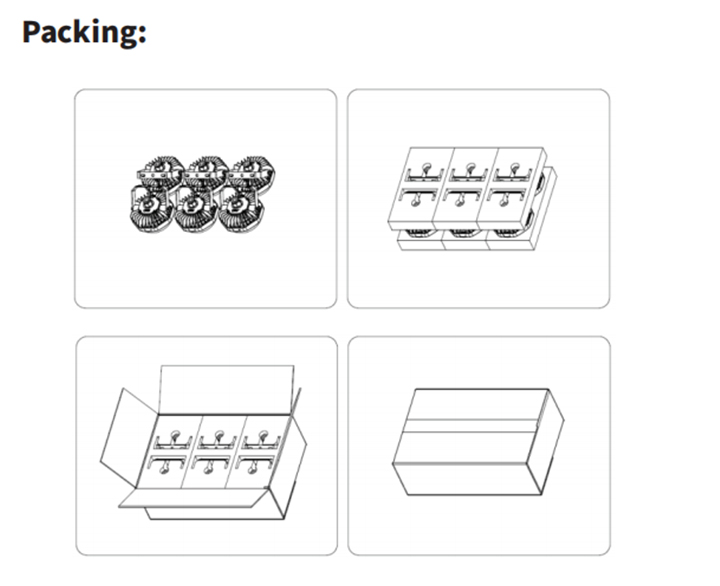

- Packing
|
Item |
Technical Data |
Unit |
|
Power Rating |
24/36/50 |
W |
|
Voltage Rating |
100-277 |
VAC |
|
Frequency |
50-60 |
Hz |
|
Power Factor |
>0.95 |
- |
|
Surge protection |
5000 |
V |
|
Light Source |
LED |
- |
|
Lifespan |
50000 |
h |
|
Light Efficiency |
120 |
lm/W |
|
CCT |
4000/5000/6000 |
K |
|
CRI |
>70 |
- |
|
Lamp Type |
I |
- |
|
Lamp Body |
High quality aluminum |
- |
|
Color |
Yellow |
- |
|
Size of Input Cable |
Φ6～8mm，3×1.0mm² |
- |
|
IP Rating |
IP66 |
- |
|
Corrosion -Proof grade |
WF2 |
- |
|
Working temperature |
-40～55 |
℃ |
|
Storage temperature |
-40～60 |
℃ |
|
Size |
Φ178XH158 |
mm |
|
Weight |
1.4 |
Kg |
|
Certificate |
CNEX，CE |
- |
