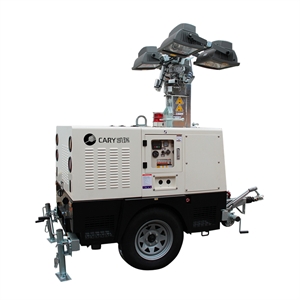

Mobile Smart Lighting Platform
1.Lighting performance: Lighting performance: Generators, engines and chassis are all internationally renowned brands. The performance is stable and reliable. The mirror of the luminaire is scientifically designed, and the multi-curve combination can be used to achieve both far and near, the illumination distance is long, and the irradiation area is large.

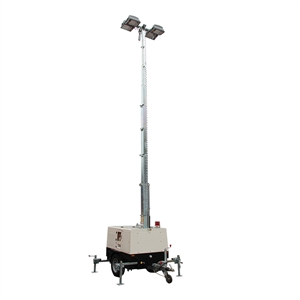

2.Lifting performance: lifting mast can reach 9 meters when rising, the light coverage radius can reach 150~200m. The lifting mast can realize 360 degree rotation, and the lamp head can also change the projection angle within the range of 0~360 degrees.
3.Safe and reliable: The double locking setting facilitates safe transport and the lift mast height and the lighthouse are free to lock. An emergency stop button is set, and the emergency button stops the operation in an emergency. Waterproof control, protection and operation integrated panel.
4.Use environment: It is suitable for outdoor lighting in outdoor emergency situations such as earthquake, flood control, flood control, disaster relief and disaster relief.
- Specification
- Optical Parameters
- Dimension
- Installation
- Packing
Lighthouse |
Lamp head power |
4x1000W (Metal halide lamp) |
|
Storage size |
2836x 1350x2391mm |
|
Stretch size |
2836x 1350x 9000mm |
|
Light panel flip angle |
0-75° |
|
Wind resistance rating |
Level 8 |
|
IP Rating (lamp) |
IP65 |
|
Total weight (without fuel) |
1150kg |
Generator |
Voltage Rating
|
220VAC/50Hz |
|
Power Rating |
5KVA |
|
Tank capacity |
75L |
|
Filling fuel working hours |
37.5h
|
Lifting mast |
Control type |
Machinery |
|
Horizontal rotation angle
|
360° |
|
Number of masts |
9 |
